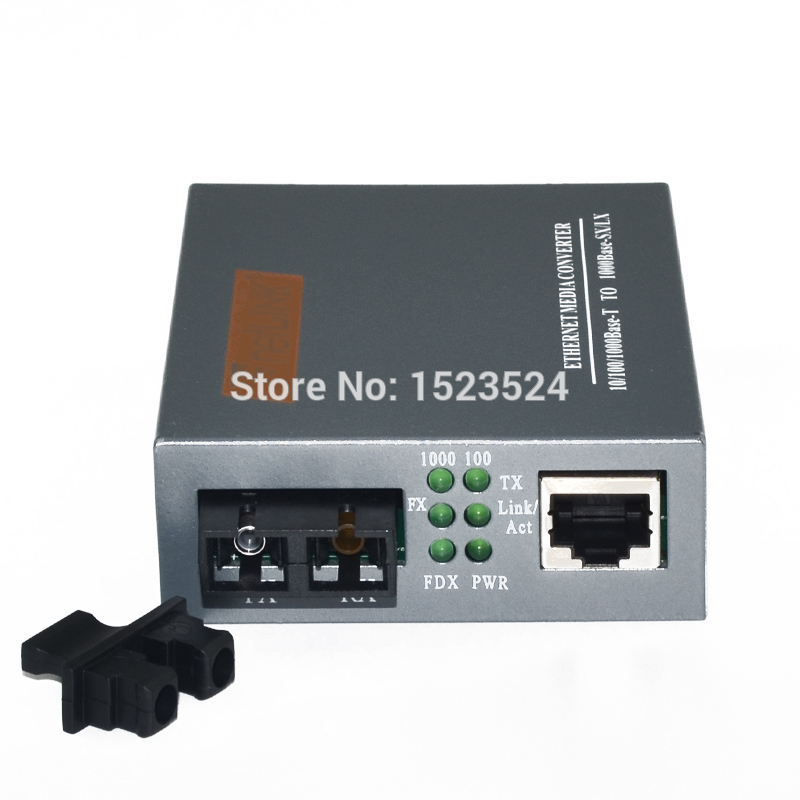

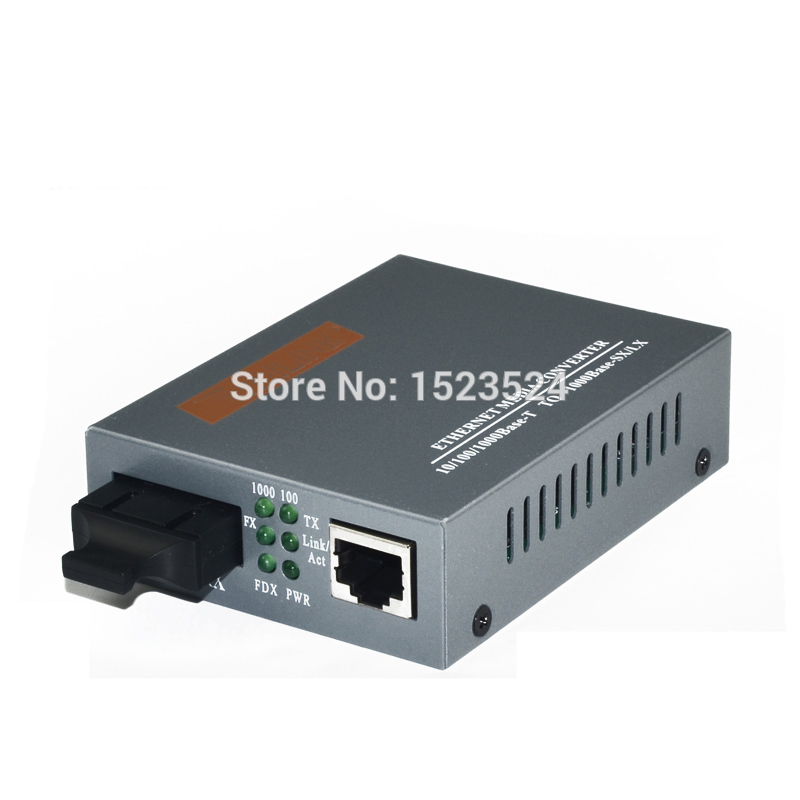

Name: Gigabit single-mode fiber optic transceivers (10/100/1000)

Standard configuration: host 1 gigabit, a three-wire power cord, Manual 1, a certificate, a warranty card

Package Type; carton packaging, host anti-static packaging

10/100 / 1000M adaptive Ethernet optical transceiver, using the latest design, high-performance chips, high-quality optical transceiver module (the new brand-name manufacturers), stable performance, excellent quality, adaptability, and common network equipment can use the normal connection. For telecommunications, broadcasting, broadband networks require high-speed, high-traffic, high-performance, high-reliability Ethernet environment

Features:

An electrical port and two RJ45 SC optical ports, Gigabit Ethernet twisted pair and fiber optic photoelectric signal conversion between
Accord IEEE802.3z / AB 1000Base-T and 1000Base-SX / LX standards
1000M optical port for full-duplex mode; electrical port for 10/100 / 1000M adaptive mode
Electrical interface can adaptively direct line / crossover cable connection
Electrical ports support full / half duplex mode
Supports a maximum 9K bytes of long packets
IEEE802.3X flow control supports full-duplex, half-duplex backpressure flow control
Support Link Fail Pass fiber breakage detection function (optional)
Up to 100 m twisted pair; maximum of 10 to 100 km single-mode fiber
There are six LED indicators: Power, FX Link / Act, TX 100, TX 1000, TX FDX, TX Act to facilitate the monitoring of transceiver operating status and determine the cause of failure

Built-in power supply: AC100 ~ 265V / DC5V switching power supply
Working temperature: 0 ~ 50
Storage temperature: – 40 ~ 70

Dimensions: 140mm × 120mm × 30mm Power Built
TB2S3AxcXXXXXcuXXXXXXXXXXXX_!!1635720998TB1NP7XHpXXXXX0XVXXXXXXXXXX_!!0-item_pic

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên đánh giá “Netlink Converter 1000Mb single fiber”

Netlink Converter 1000Mb single fiber

850.000 ₫
